Pallet Rack Identification Guide for Efficient Warehousing
Discover the right pallet rack system for your warehouse. Our guide simplifies identification and selection, ensuring optimal storage solutions tailored to your operational needs.
Get a QuoteWhat is Pallet Racking?
Pallet racking is a material handling storage system designed to hold palletized goods in warehouses, distribution centers, and industrial facilities. It maximizes vertical and horizontal space, allowing businesses to store more inventory efficiently.
Pallet racks are made up of uprights (frames) and beams that create multiple storage levels, making it easy for forklifts to load and retrieve pallets.
Understanding your pallet racking type is essential for safety, compatibility, and efficiency—especially when adding new components or replacing damaged parts. Learn more in our Pallet Rack Buying Guide.
Common & Interchangeable Styles: Teardrop

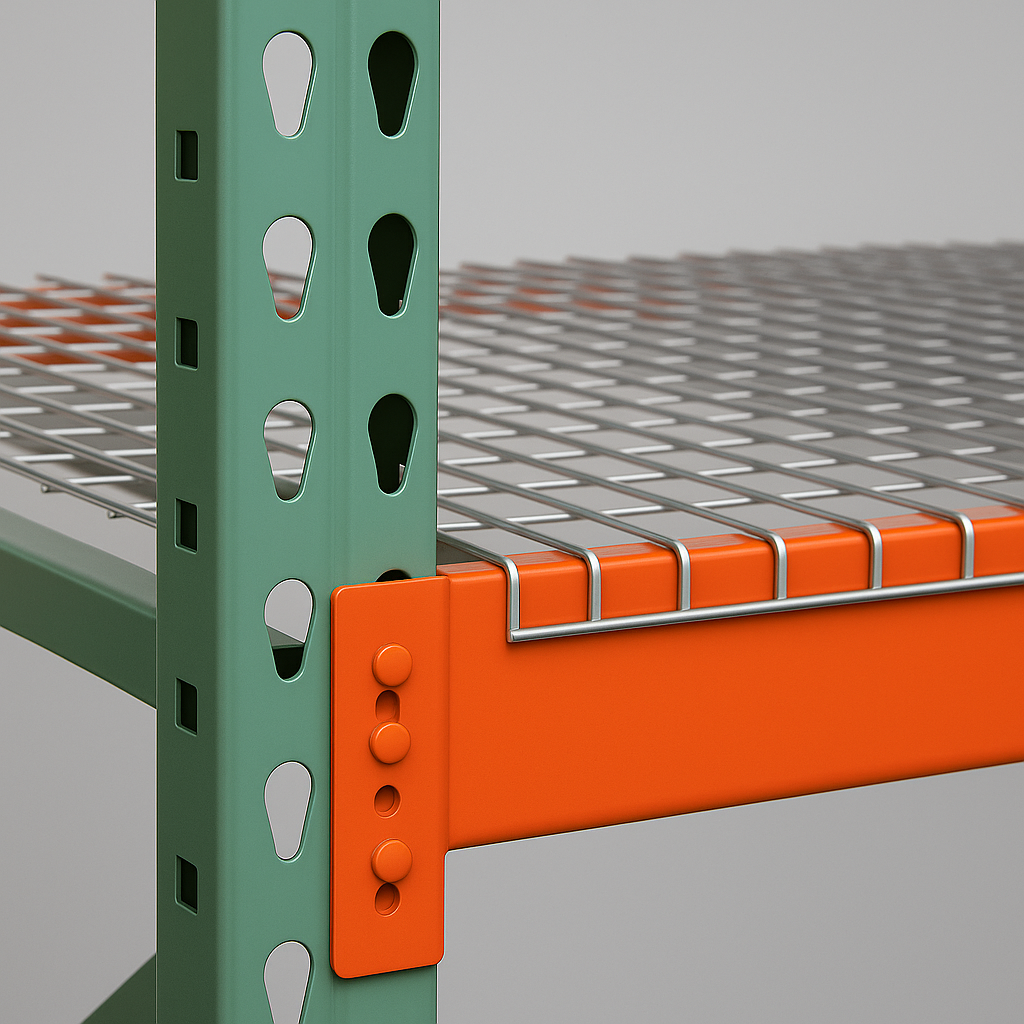

Old Style Teardrop
The original and most common rack in North America. Upright frames feature teardrop-shaped slots (rounded at top, tapered at bottom). Beams lock into place with connector pins that slide into these slots.

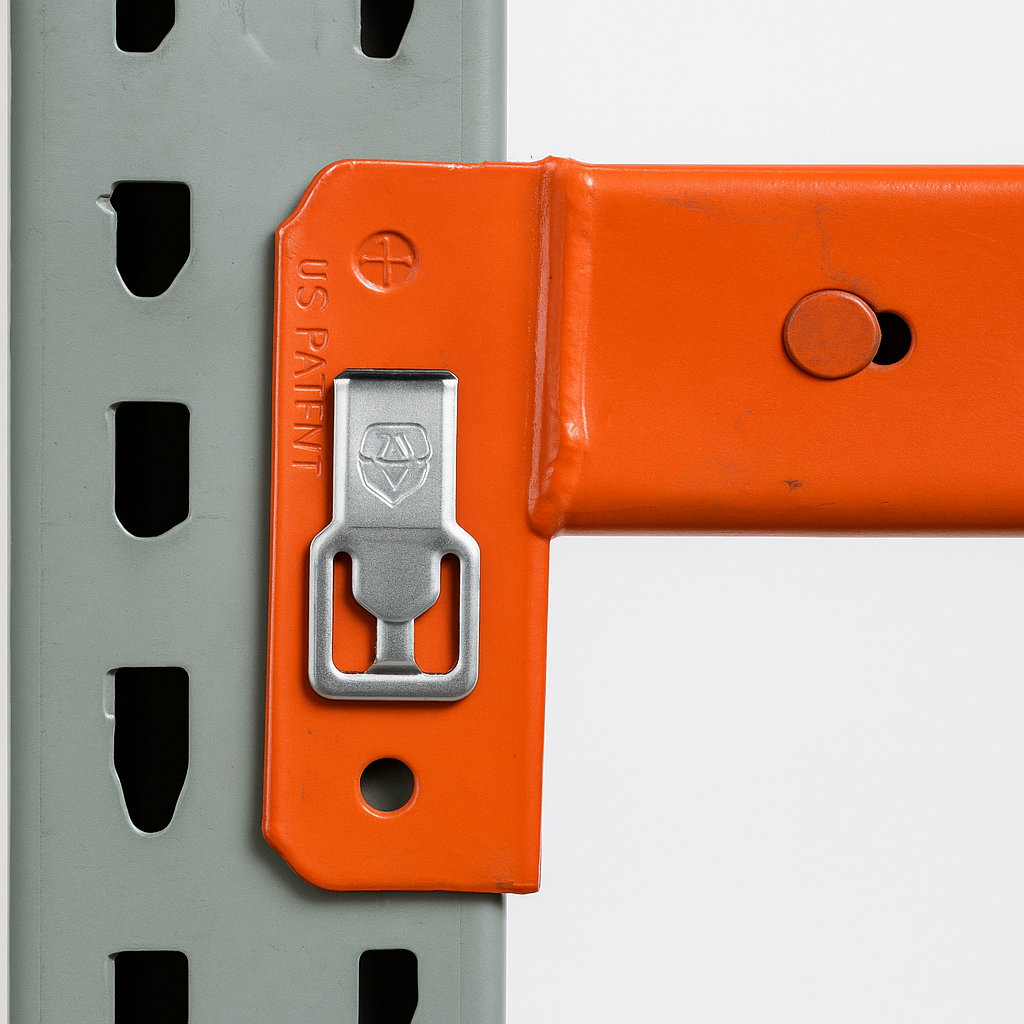

New Style Teardrop
Developed by Interlake, with more rectangular and narrower upright holes. Uses riveted pins shaped like pointy teeth or tapered ovals. Pins and slots are typically spaced 2” or 4” apart.
Pro Tip: Old and new style teardrop racks are not always interchangeable. Always verify compatibility before ordering parts — see our Teardrop Pallet Rack section for details.
Other Major Pallet Rack Styles

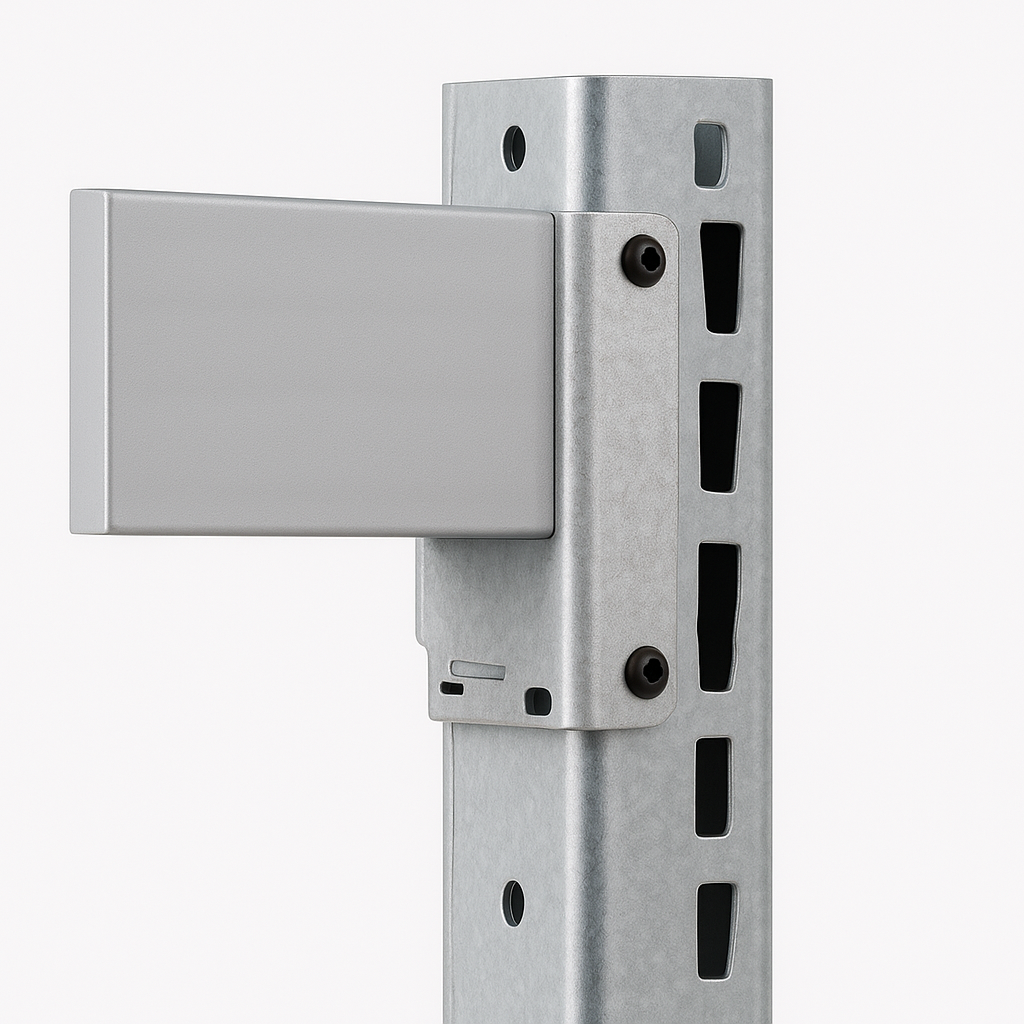

Keystone / Republic Style
Distinctive trapezoidal (keystone) shaped holes centered on the upright face.
- Best For: General warehousing and storage
- Features: Slots spaced vertically at 3” on-center, J-hook or removable steel clip safety locks
- Specifications: Compatible with standard pallet sizes, medium to high load capacities
Example Use Case: Storing pallets in a distribution center.
Request Quote
Ridg-U-Rak / Slotted Style
Features hook-and-slot automatic lock beam-to-column connections.
- Best For: High-capacity storage and durable applications
- Features: Patented six-bend roll-formed column design, known for rigidity
- Specifications: Wide range of load capacities, suitable for heavy-duty storage
Example Use Case: Storing heavy materials in an industrial warehouse.
Request Quote

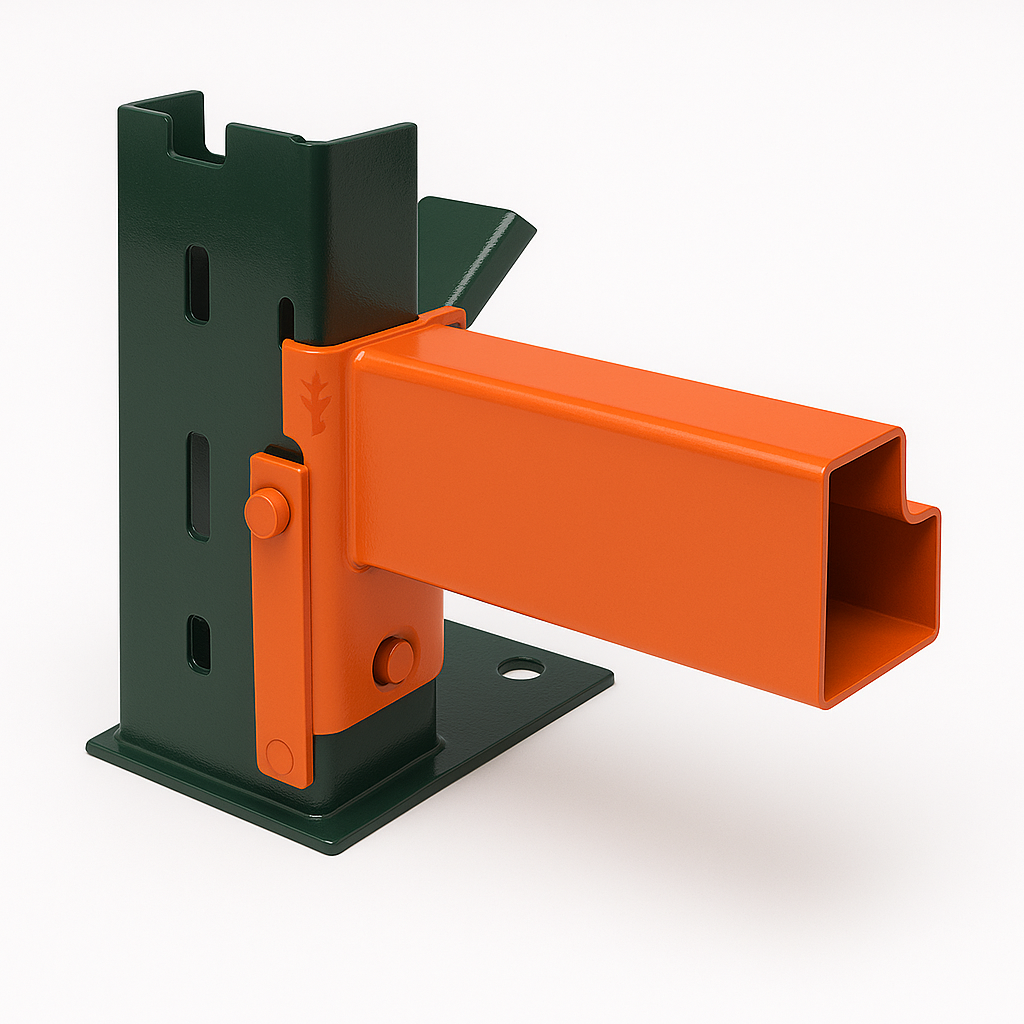

Sturdibuilt Style
Similar to roll-formed racks but beams attach to uprights with bolts.
- Best For: Adjustable shelving and heavy-duty storage
- Features: Greater weight-bearing capacity, reconfigurable design
- Specifications: High load capacities, adaptable to various storage needs
Example Use Case: Flexible storage in a manufacturing facility.
Request Quote

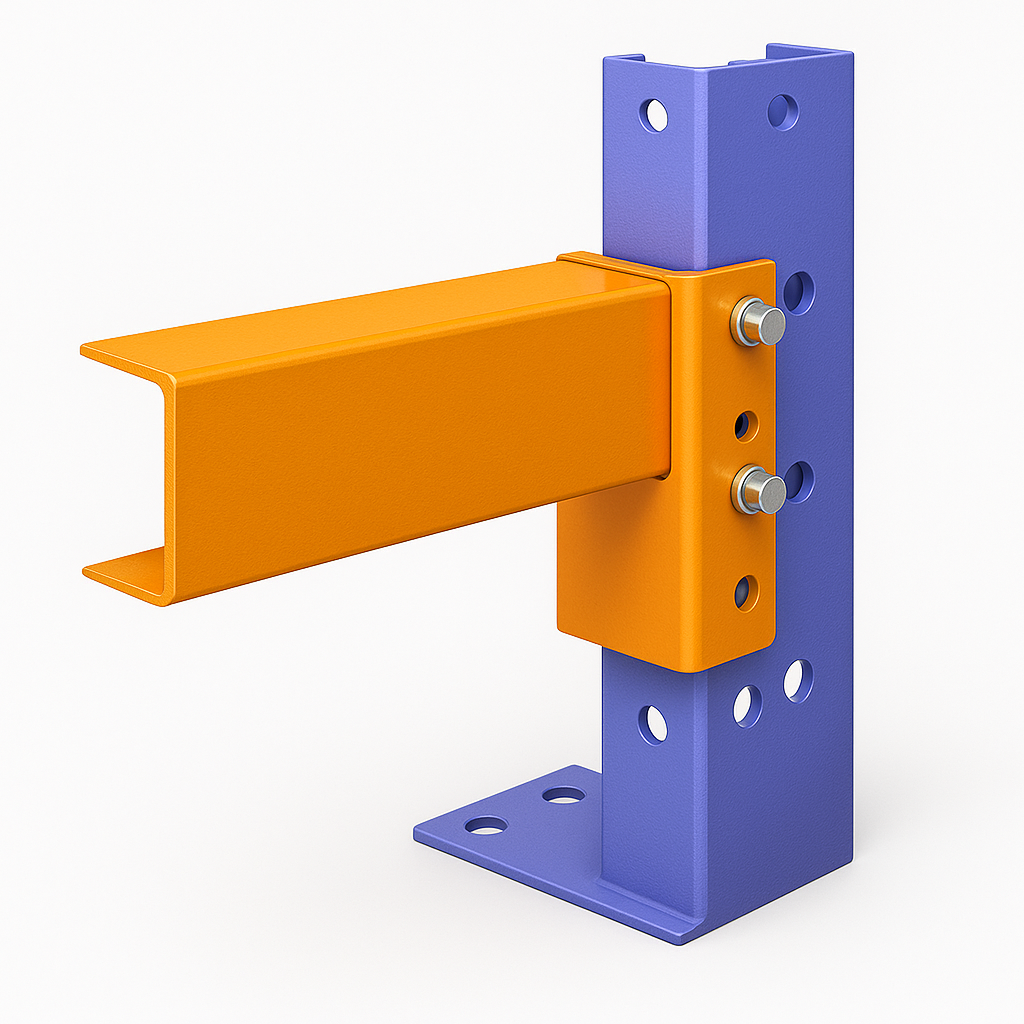

Structural / Bolted Style
Uses heavy structural steel, bolted connections, and thick components.
- Best For: High load capacities and seismic zones
- Features: Bolted connections, industrial durability
- Specifications: Designed for heavy-duty operations, high load capacities
Example Use Case: Heavy-duty storage in seismic-prone areas.
Request Quote

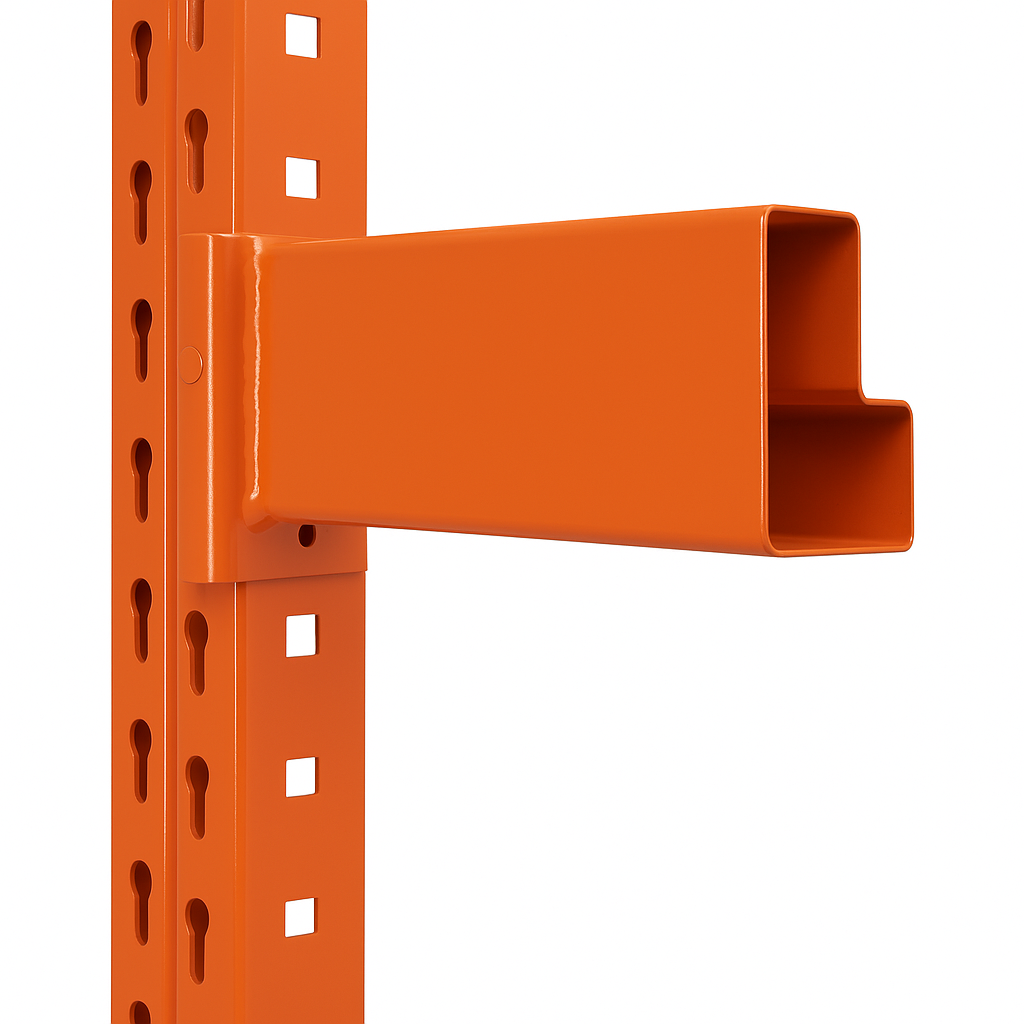

Paltier Style
Designed for vertical pallet storage.
- Best For: Vertical storage and second-hand markets
- Features: Paltier uprights and beams, often available used
- Specifications: Suitable for standard pallet storage
Example Use Case: Cost-effective storage in a used equipment warehouse.
Request Quote

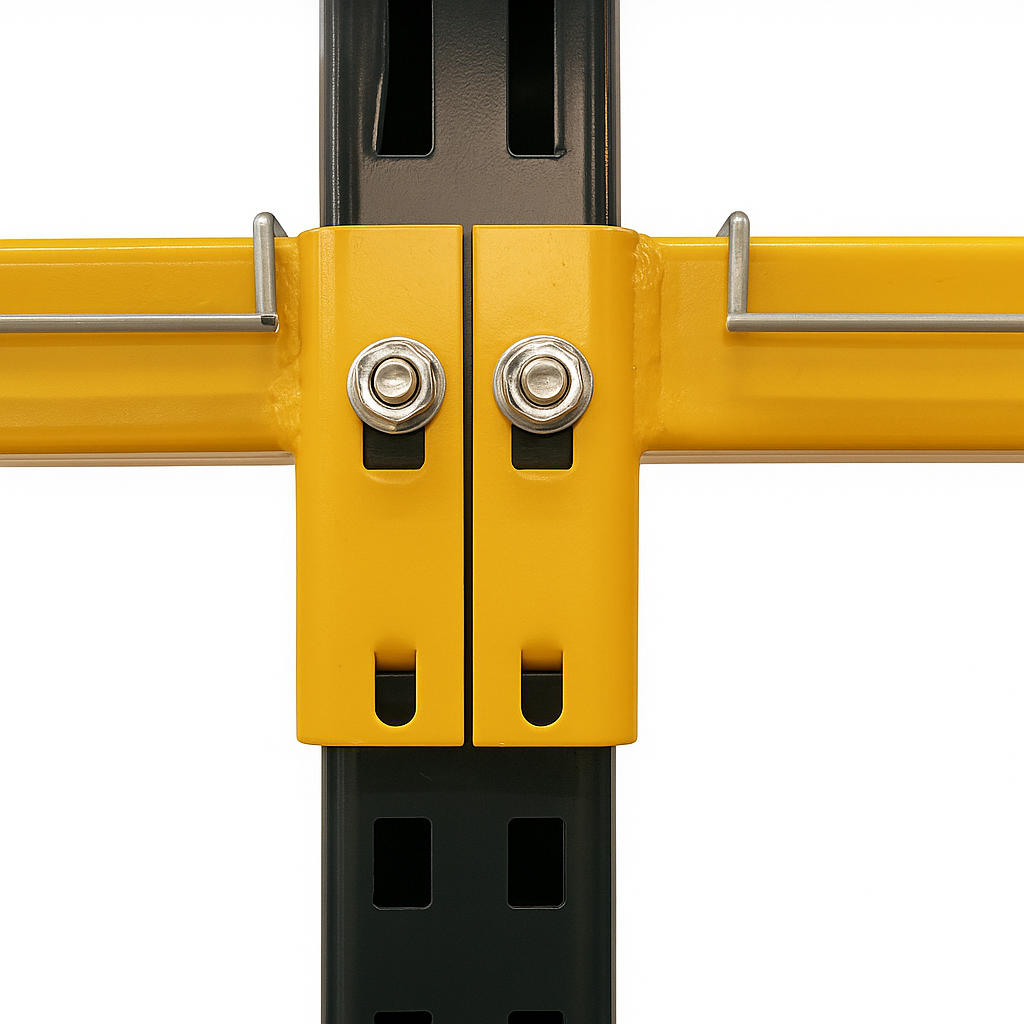

T-Bolt Style
Uses a patented T-Bolt connection with a quarter-turn lock.
- Best For: Quick installation and high-strength storage
- Features: T-Bolt locking mechanism, rigid structure
- Specifications: High load capacities, easy to install
Example Use Case: Rapid setup in a high-turnover warehouse.
Request Quote

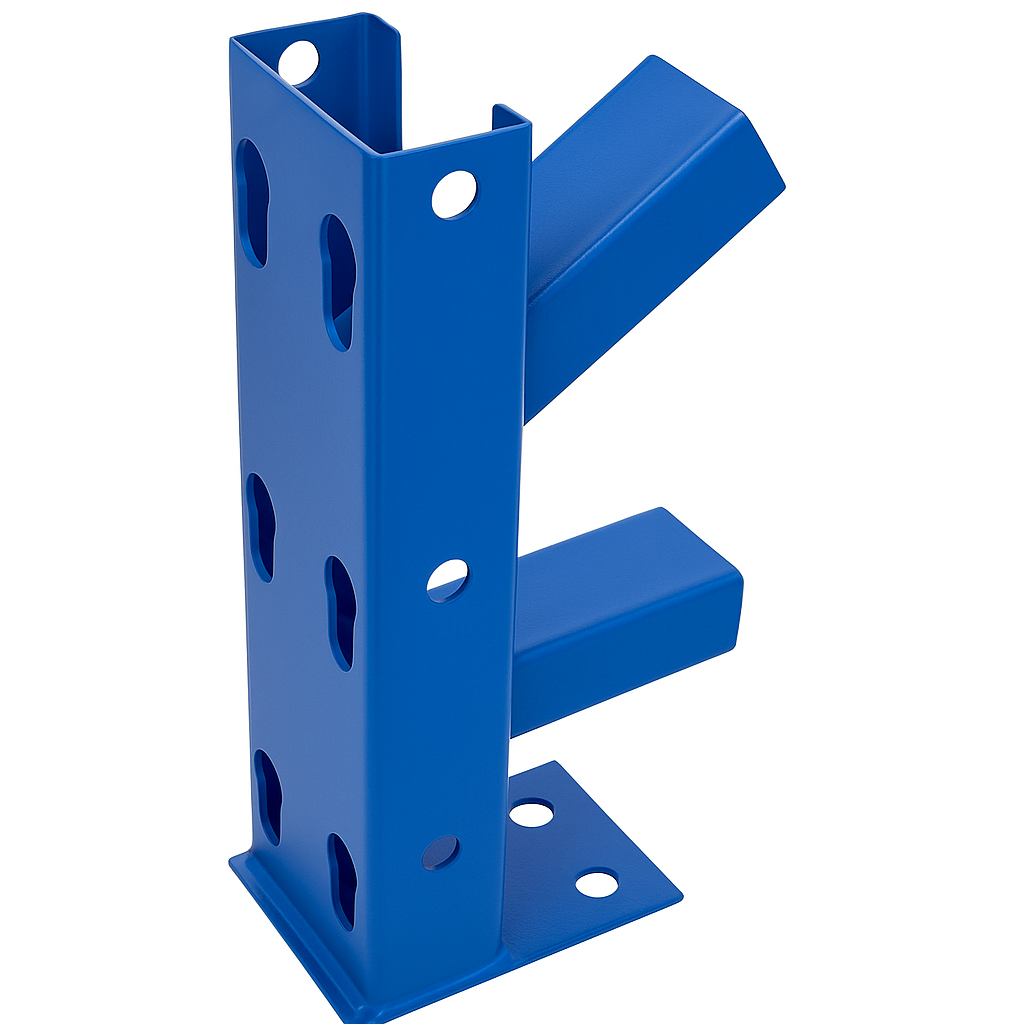

Frick Gallagher Teardrop
Heavy-duty selective pallet rack system with slide-and-lock installation.
- Best For: Heavy-duty selective storage
- Features: Slide-and-lock mechanism, robust design
- Specifications: High load capacities, compatible with selective racking
Example Use Case: Selective storage in a large distribution center.
Request Quote

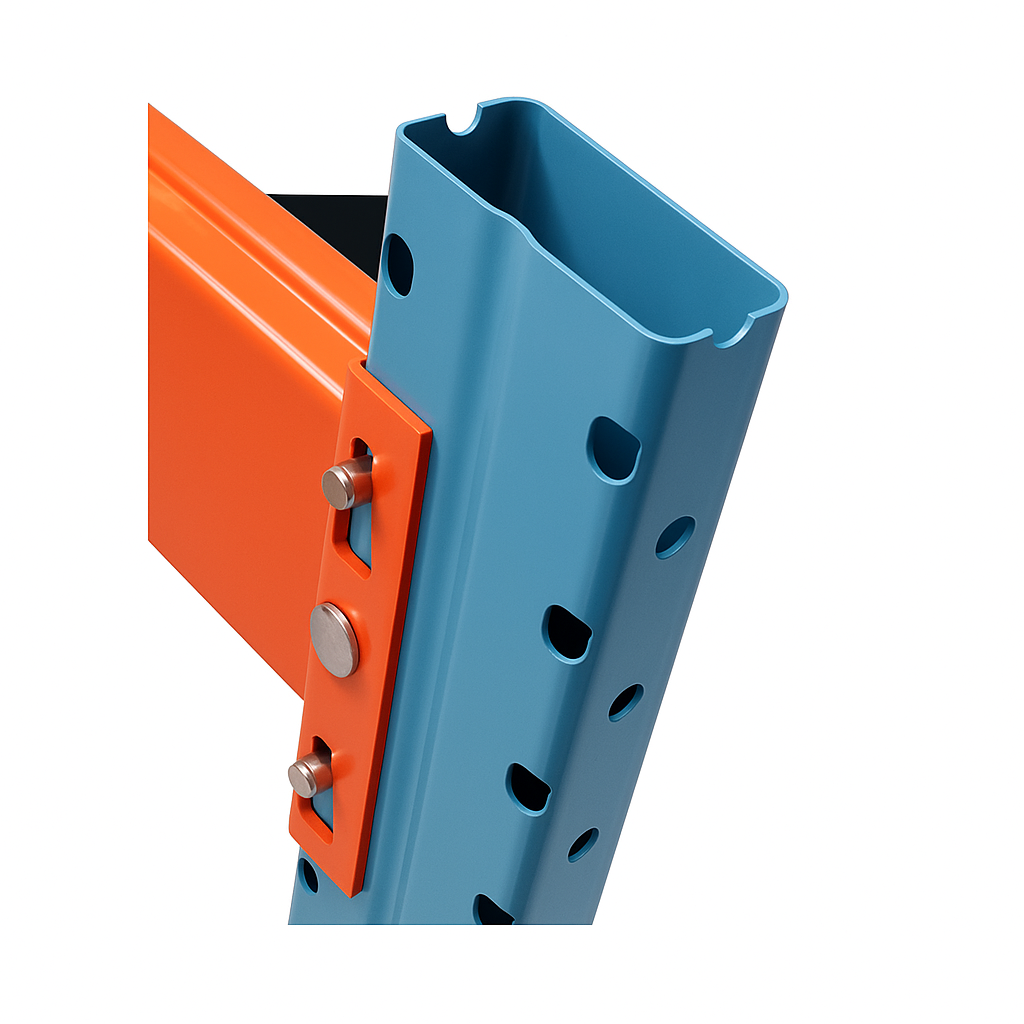

Speed Rack
Recognizable by its handle clip and J-hook safety pin system.
- Best For: Safe and secure storage
- Features: Orange beams, yellow or light blue uprights, safety pins
- Specifications: Prevents accidental beam detachment, medium load capacities
Example Use Case: Secure storage in a retail warehouse.
Request Quote

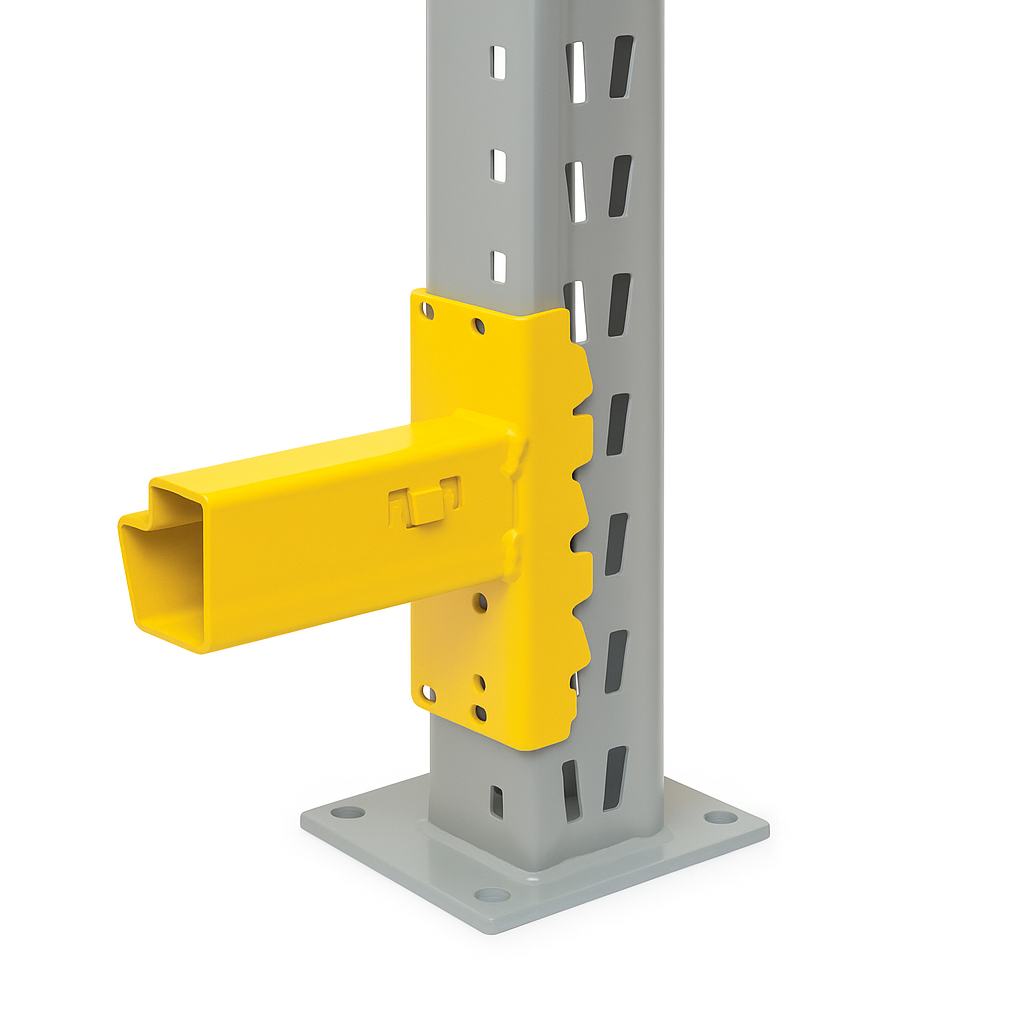

Penco Style
Uprights with side-by-side narrow slots that taper away at the top.
- Best For: General warehouse storage
- Features: Tapered hooks, sliding lock with painted steel tab
- Specifications: Tapered beam profile, medium load capacities
Example Use Case: Versatile storage in a small to medium warehouse.
Request Quote

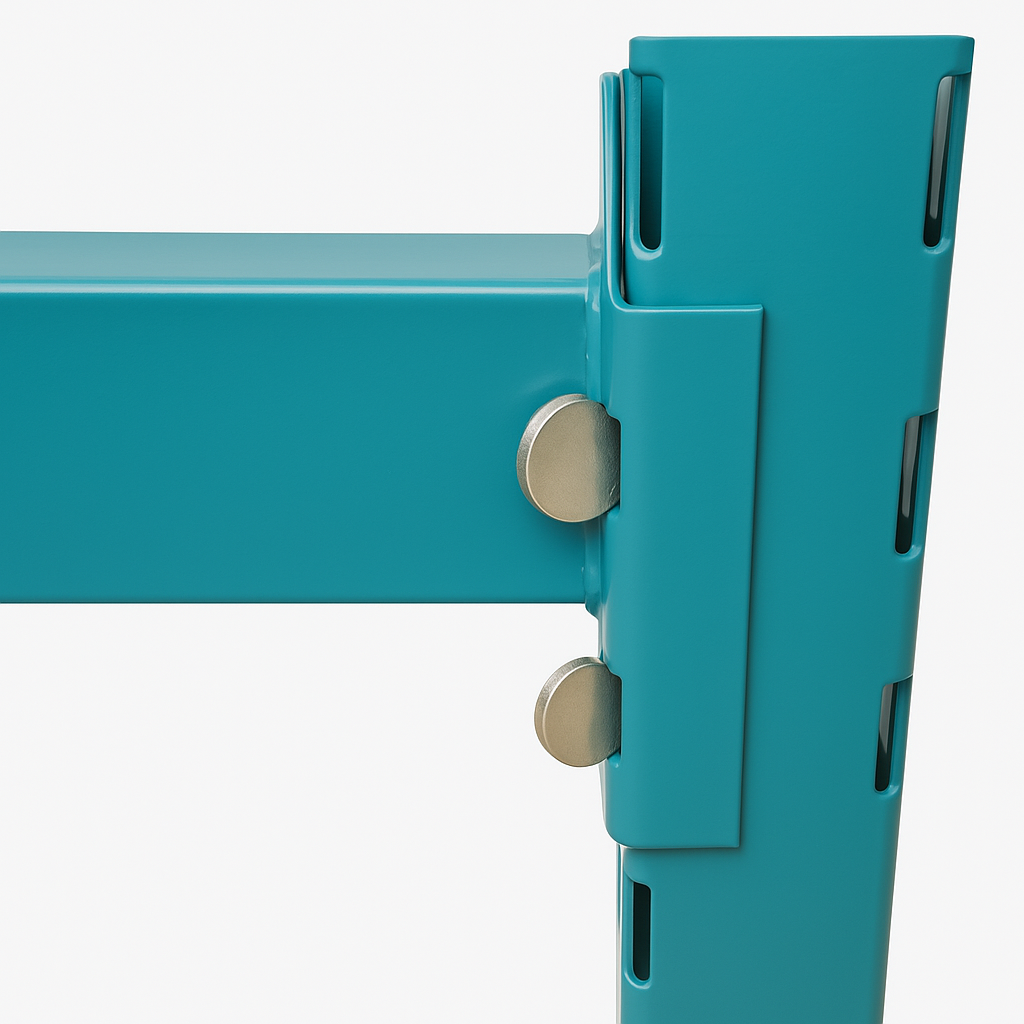

Unarco
Manufactures roll-formed and structural racks for various storage layouts.
- Best For: Versatile warehouse storage
- Features: Selective pallet racks, compatible with multiple configurations
- Specifications: Medium to high load capacities, flexible design
Example Use Case: Multi-purpose storage in a logistics hub.
Request QuotePallet Rack Components
To properly identify your rack, you need to know its parts.
Upright Frames
Vertical columns with punched holes that determine rack height and depth.
Beams
Horizontal load-bearing members that connect to uprights.
Decking
Wire mesh, wood, or steel panels placed over beams to support products.
Row Spacers
Maintain alignment between parallel racks — available in our accessories.
Safety Clips & Pins
Lock beams securely into uprights.

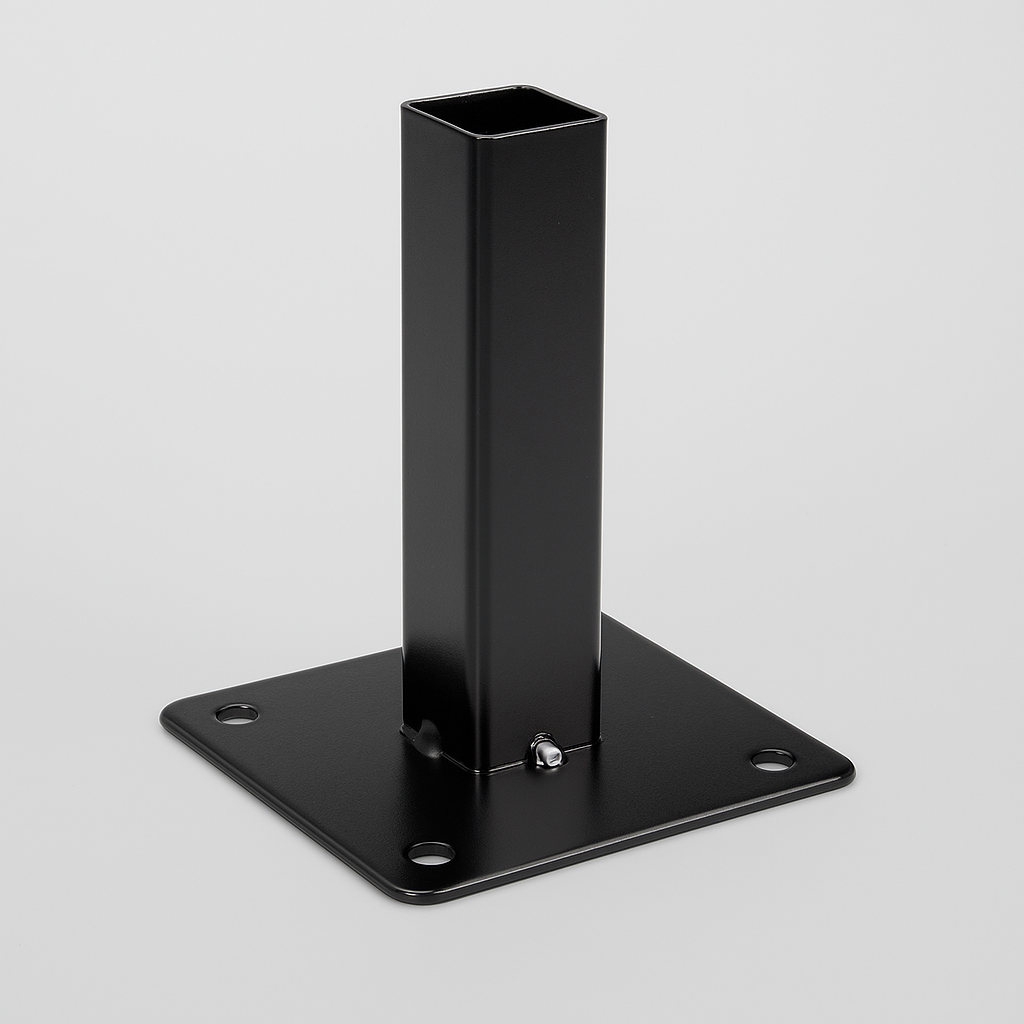

Base Plates & Anchors
Provide rack stability and floor connection.
Why Proper Identification Matters
Safety
Proper identification ensures that beams and uprights are correctly matched to their load capacities, preventing structural failures. Using incompatible or incorrectly rated components can lead to rack collapses, posing significant risks to warehouse personnel and inventory.
Compatibility
Each pallet rack style has unique connection mechanisms, such as teardrop or keystone slots. Identifying your system ensures that replacement parts or expansions fit seamlessly, avoiding installation issues or weakened structures due to mismatched components.
Efficiency
Knowing your rack type streamlines maintenance and upgrades, reducing operational downtime. Accurate identification allows for quick sourcing of compatible parts, minimizing delays in repairs and ensuring smooth warehouse operations.
Longevity
Using the correct components extends the lifespan of your racking system by ensuring optimal load distribution and structural integrity. Proper identification prevents wear and tear from incompatible parts, reducing the need for frequent replacements.
